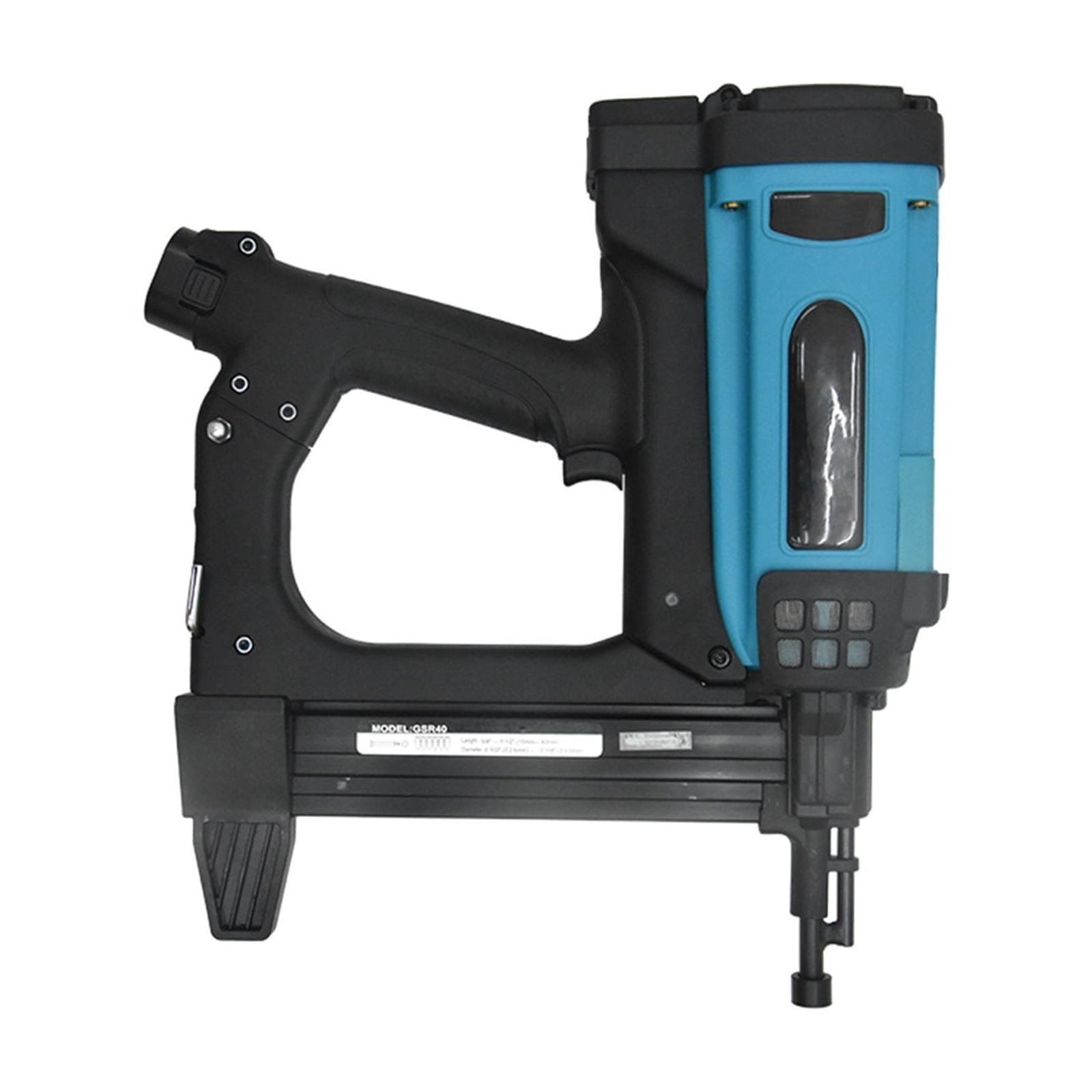

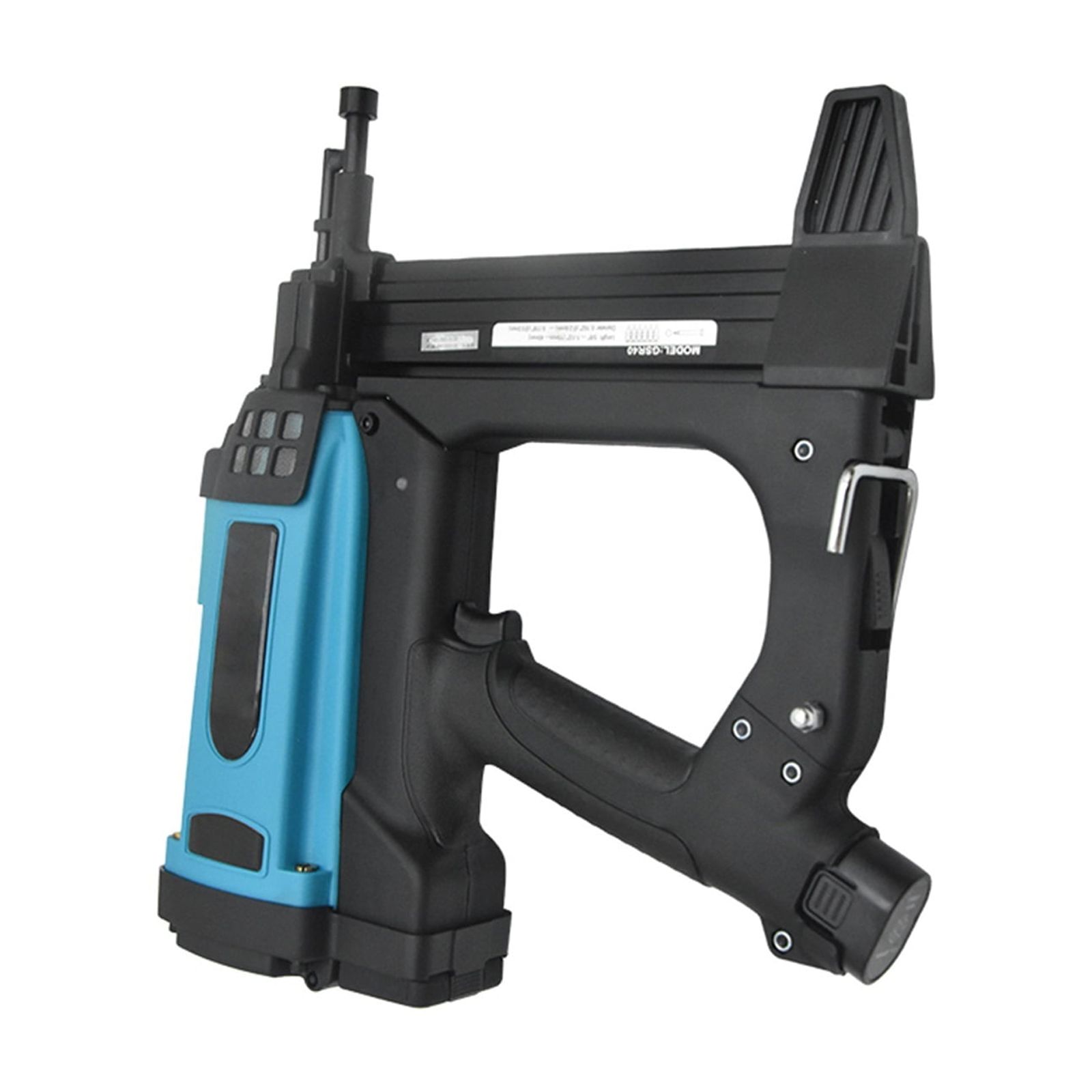

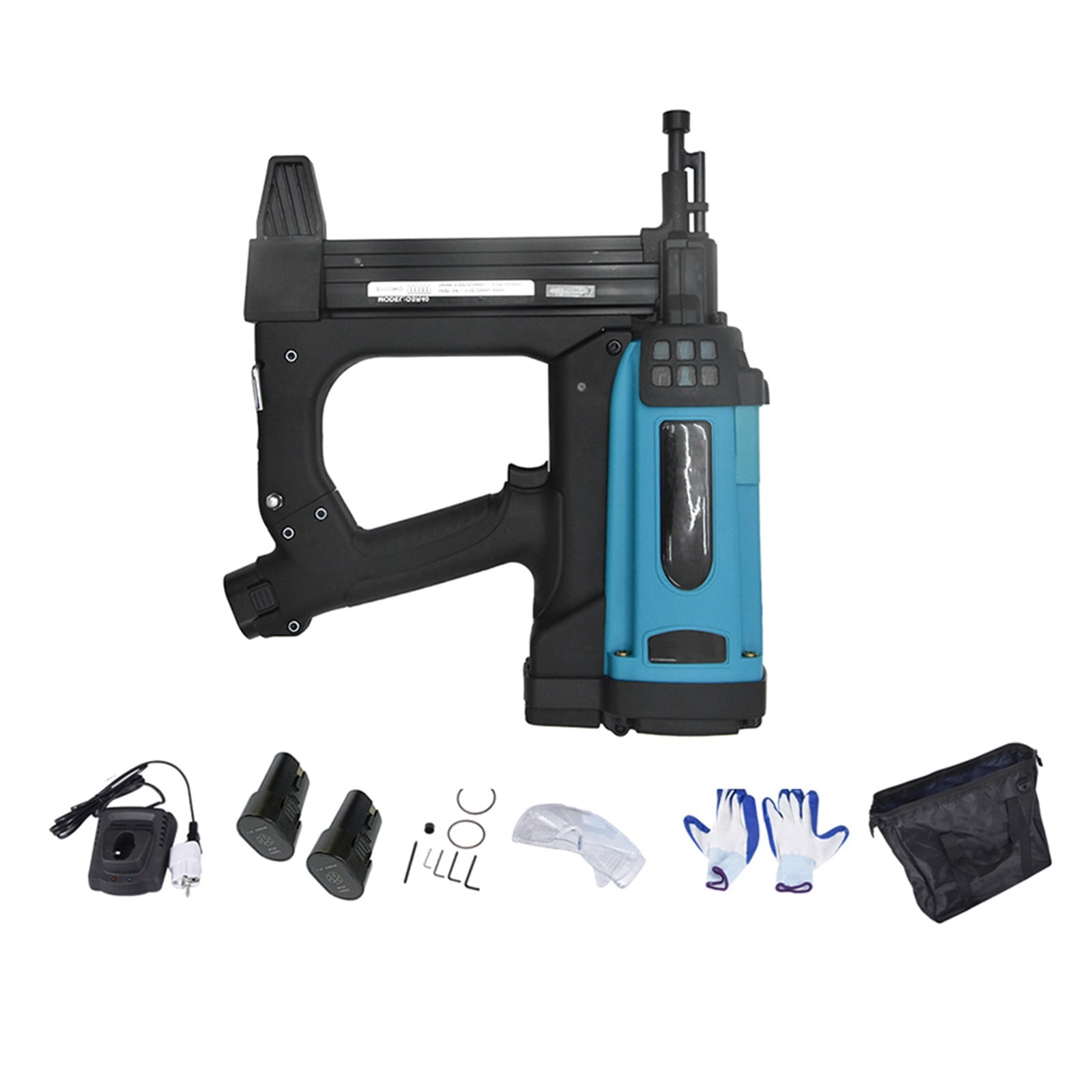

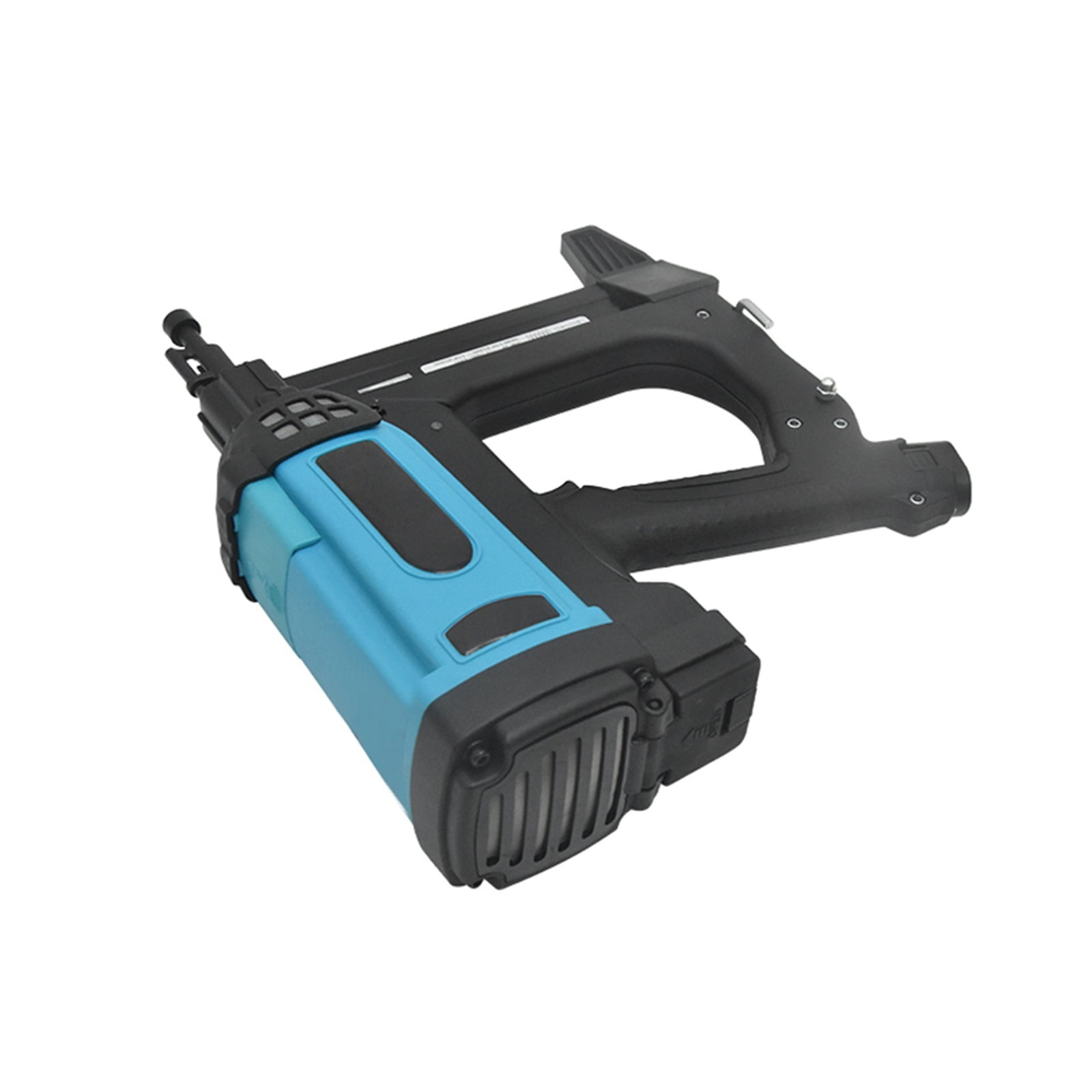

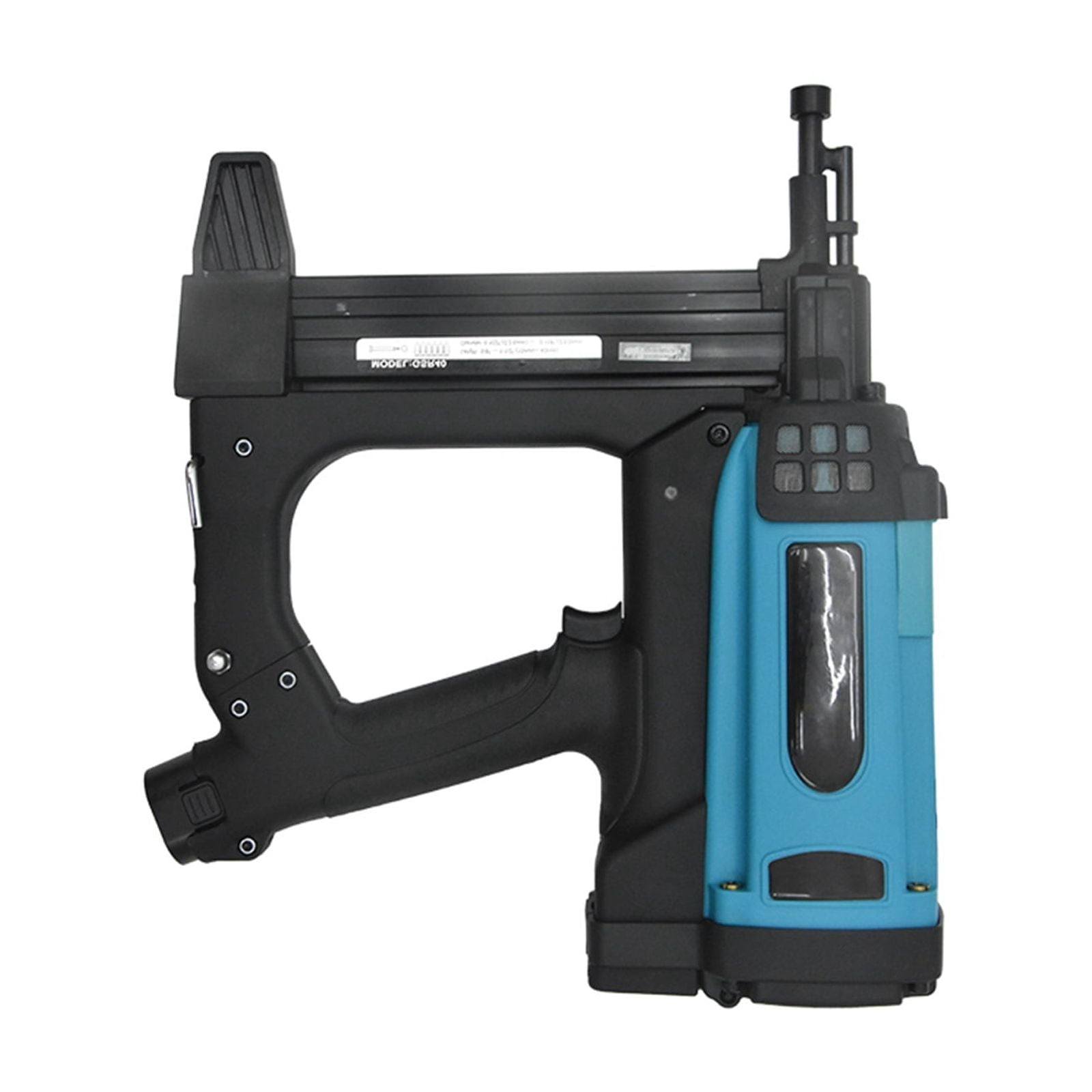

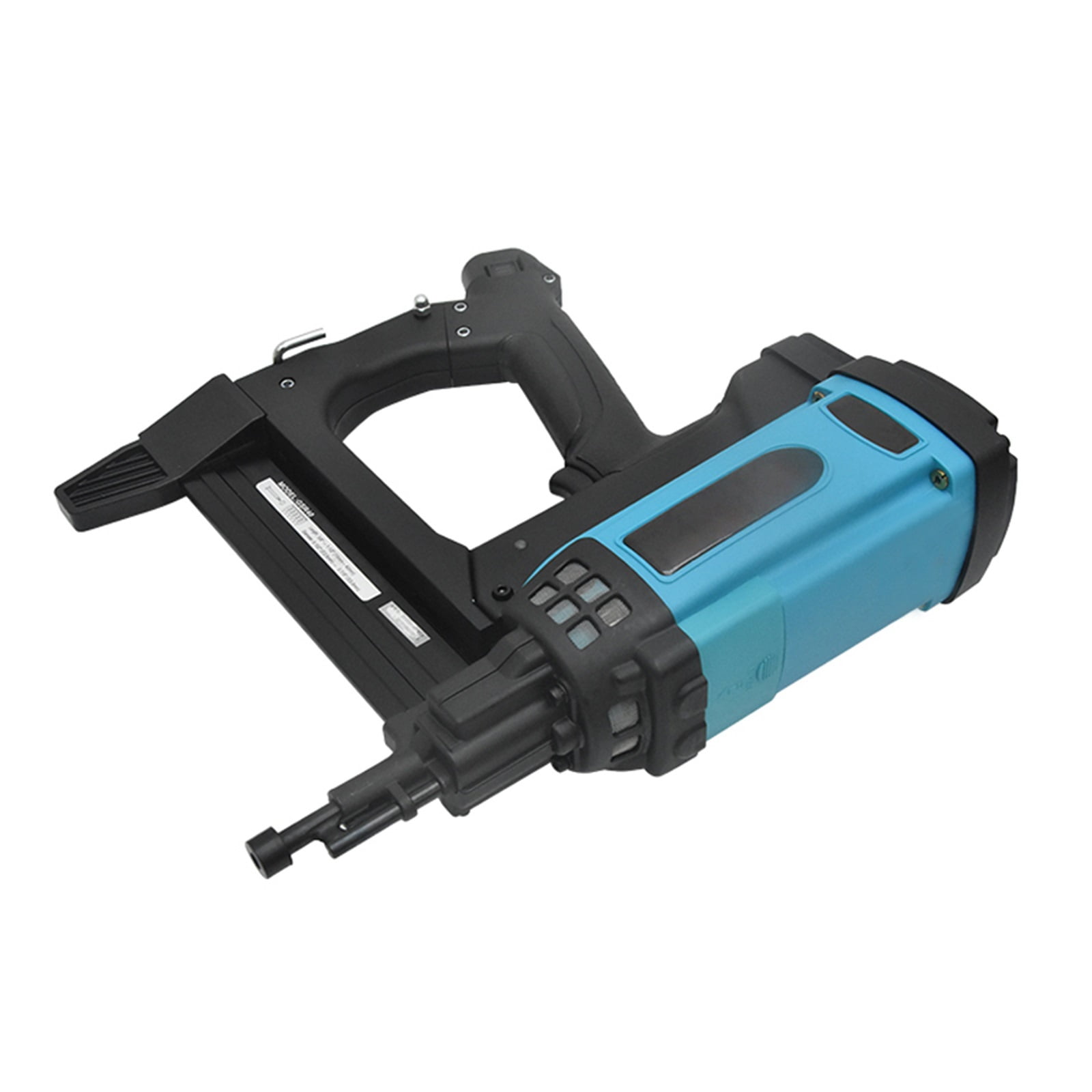

Pneumatic Nail Gun 7. 2V Lithium Battery Gas Nail Gun Steel Air Stapler Pneumatic Tools For Frame And Trunking

<p>Note: </p><p>The product does not contain gas.</p><p>Charger instructions:</p><p>When the battery is plugged in and charged, the red light is always on,</p><p>and the green light is displayed when it is fully charged.</p><p>If the battery is reversely inserted and charged, it will cause the chargerto </p><p>burn out,so pay attention to the positive and negative poles of the battery.</p><p>Indicator Light:</p><p>1. Steady green light: indicates normal operation</p><p>2. Green light flashes: indicates that it is in standby</p><p>3. Steady red light: indicates insufficient battery</p><p>4. Red light flashes: it means you need to take a break after overheating</p><p>5. The red and green lights flash alternately: it means it is close to the </p><p>thermal protection temperature</p><p>6. The yellow light is always on: it means it needs cleaning</p><p>Common Problems:</p><p>1. The striker does not reset</p><p>Reason analysis: long-term non-cleaning will cause the air tank </p><p>to be unsealed.Normally, it will be cleaned every 2000-5000 nails.</p><p>Solution: Need to clean the cylinder head, cylinder, lubricate oil, </p><p>and adjustthe openingdirection of the piston ring to 180°.</p><p>2. The fan rotates, but the gas gun does not sound</p><p>Solution: Check the quality of the air intake nozzle;gas cylinderandthe ignition coil, etc.</p><p>3. The nail cannot be completely driven in</p><p>Reason analysis: wear of piston rod</p><p>Solution: Replace the piston rod</p><p>Reasons and solutions for the nail gun not working properly:</p><p>1. The nail gun has a safety device, which cannot be driven when there are only a few nails;</p><p>2. Check the gas, refer to the video to test the gas</p><p>3. After eliminating the previous problem, you can try to remove the 4 screws of the cover, then turn </p><p>the cover up, then press the trigger, check whether the fan is running and whether the ignition is </p><p>normal, the ignition position needs to be kept clean and free of foreign objects, then If the rubber ring </p><p>is dry, apply some lubricant to it.</p>

• Working voltage: 7. 2V
• Number of Nails: 30
• Gasconsumption: 1000-1200 times/can
• Working rate: 120 times/minute
• Scope of application: fixed door and window frames, billboards, brackets, trunking,air conditioning ducts, iron sheets, etc.
